Multi Rotor Drone Motor

12070 High Speed Brushless DC Electric Motor 41kg Thrust For Multirotor Heavy Lift Drone

All Category

Brushless DC Motor

Mr. Han

han@furiousmotor.com

+86 139 2465 2635

Contact Now

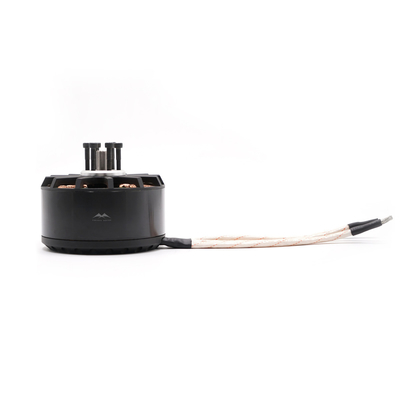

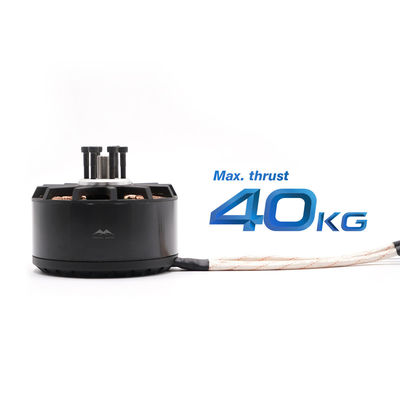

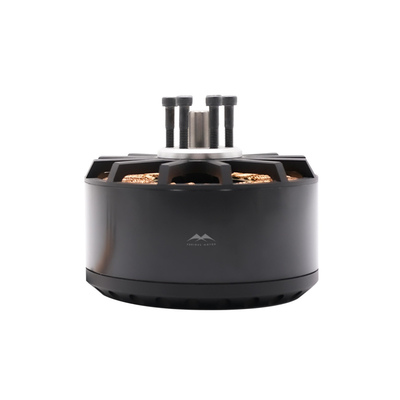

12070 High Speed Brushless DC Electric Motor 41kg Thrust For Multirotor Heavy Lift Drone

Brand Name:	Furious Motor
Model Number:	12070
MOQ:	1
Price:	$300
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

12070

Dimension:

120mm * 70mm

Max. Thrust:

Max. Torque:

18N.m

Max. RPM:

Suggested ESC:

24S 150A

Suggested Prop:

36 Inch Propeller

Max. Current:

Max. Voltage:

Max. Power:

Li - Po:

14S - 24S

Hall Sensor:

Optional

Weight:

2.4KG

Application:

Drone

Supply Ability:

3000 pcs per month

Highlight:

12070 high speed brushless dc electric motor

41kg high speed brushless dc electric motor

150A heavy lift motor

Product Description

Intoroduction

The Furious Motor 12070 BLDC motor is crafted to excel across an array of dynamic uses, from large-scale drones and UAVs to multirotor systems, robotic platforms, and electric tools. Expertly engineered for peak performance, this advanced motor pairs effortlessly with a 36-inch propeller and a 24S 150A motor controller, ensuring precise handling and optimized power delivery. Delivering a maximum thrust of 41kg, it provides exceptional strength, making it an ideal choice for powering a wide range of heavy lift drone operations.

Tech Specs

Model	12070
Type	Brushless DC motor
KV	80
Suggested ESC	24 S 150 A
Suggested Propeller	36 inch
Max. Thrust	41 kg
Max. Torque	16 N·m
Max. RPM	5400
Li-Po	14 S ~ 24 S
Max. Voltage	79 V
Max. Current	112 A
Max. Power	8.5 kW
Motor Dimension	120 mm * 70mm
Weight	2.4 kg
Application	Multi rotor drone, heavy lift drone, paramotor

Details

12070 High Speed Brushless DC Electric Motor 41kg Thrust For Multirotor Heavy Lift Drone 0

12070 High Speed Brushless DC Electric Motor 41kg Thrust For Multirotor Heavy Lift Drone 1

12070 Powerful Brushless DC Motor 41kg Thrust For Multirotor Heavy Lift Drone With Long-Lasting Reliability
