High Power 154120 80kg Thrust Heavy Lift Brushless Motor 90V For Commercial Operations
All Category

Heavy Lift Drone Motor

Underwater Thruster Motor

Electric Surfboard Motor

Electric Skateboard Motor

Agricultural Drone Motor

Racing Drone Motor

FPV Motor

Power Tool Motor

Paramotor

Drone Propulsion System

Underwater Propulsion System

Motor ESC

Drone Propeller

Motor Accessories

Multi Rotor Drone Motor

Unmanned Aircraft Motor

Efoil Motor

Carbon Fiber Propeller

VTOL Drone Motor

Drone ESC

Brushless DC Motor
Contact Us
Mr. Han
han@furiousmotor.com
+86 139 2465 2635
Contact Now
High Power 154120 80kg Thrust Heavy Lift Brushless Motor 90V For Commercial Operations
  • name
  • name
  • name

High Power 154120 80kg Thrust Heavy Lift Brushless Motor 90V For Commercial Operations

Brand Name: Furious Motor
Model Number: 154120
MOQ: 1
Price: $885
Packaging Details: Carton witn protection (EPE)
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Model:
154120
Dimension:
154mm * 120mm
KV:
54
Max. Thrust:
80KG
Max. Torque:
47N.m
Max. RPM:
3642
Suggested ESC:
24S 300A
Suggested Prop:
47 Inch Propeller
Max. Current:
252A
Max. Voltage:
90V
Max. Power:
18KW
Li - Po:
14S - 24S
Hall Sensor:
Optional
Weight:
5.9KG
Application:
Drone, Paramotor
Supply Ability:
3000 pcs per month
Highlight:

80kg heavy lift brushless motor

,

154120 heavy lift brushless motor

,

90V brushless motor for heavy lift

Product Description

Intoroduction

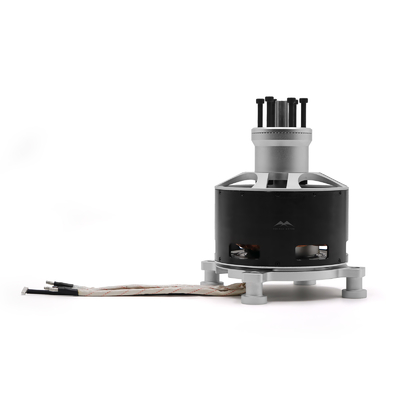

The 154120 brushless motor is meticulously designed to power a diverse range of aerial systems, including large drones, UAVs, paramotors, paragliders, multirotor drones, and unmanned aircraft. Expertly crafted for peak performance, this motor integrates flawlessly with a 47-inch propeller and a 24S 300A motor controller, providing precise handling and efficient power management.

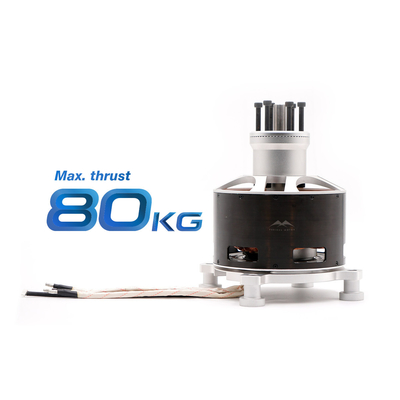

With an exceptional maximum thrust of 80kg, it has become a top-selling choice for high-demand drone applications. Transform your aerial missions with enhanced stability, as the 154120 Brushless Motor sets a new standard for dependability and accuracy in propulsion technology.





Tech Specs

Model 154120
Type Brushless DC motor
KV 55
Suggested ESC 24 S 300 A
Suggested Propeller 47 inch
Max. Thrust 80 kg
Max. Torque 47 N·m
Max. RPM 3642
Li-Po 14 S ~ 24 S
Max. Voltage 90 V
Max. Current 252 A
Max. Power 18 kW
Motor Dimension 154 mm * 120mm
Weight 5.9 kg
Application Multi rotor drone, heavy lift drone, paramotor





Details



High Power 154120 80kg Thrust Heavy Lift Brushless Motor 90V For Commercial Operations 0

High Power 154120 80kg Thrust Heavy Lift Brushless Motor 90V For Commercial Operations 1

High Power 154120 80kg Thrust Heavy Lift Brushless Motor 90V For Commercial Operations 2

High Power 154120 80kg Thrust Heavy Lift Brushless Motor 90V For Commercial Operations 3

High Power 154120 80kg Thrust Heavy Lift Brushless Motor 90V For Commercial Operations 4



High Power 154120 80kg Thrust Heavy Lift Brushless Motor 90V For Commercial Operations 5

High-Power 154120 80kg Thrust Heavy Lift Drone Motor 90V For Commercial Operations With Reliable Performance
