Heavy Payload 23850 DC Brushless Motor 98kg Thrust For Drone 90V 35KV For Industrial Lifting Tasks

Brand Name:	Furious Motor
Model Number:	23850
MOQ:	1
Price:	$1260
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

23850

Dimension:

238mm * 50mm

Max. Thrust:

Max. Torque:

80N.m

Max. RPM:

Suggested ESC:

24S 300A

Suggested Prop:

55 Tri-blade Propeller

Max. Current:

Max. Voltage:

Max. Power:

Li - Po:

14S - 24S

Hall Sensor:

Optional

Weight:

4.5KG

Application:

Drone, Paramotor

Supply Ability:

3000 pcs per month

Highlight:

23850 dc brushless motor

98kg dc brushless motor

35KV bldc brushless dc motors

Product Description

Intoroduction

The Furious Motor 23850 brushless motor embodies the zenith of propulsion innovation, meticulously engineered as an enhanced solution for large drones, UAVs, paramotors, paragliders, cargo drones, and multirotor systems. Optimized for peak performance, this motor pairs flawlessly with a 55-inch 3-blade propeller and a 24S 300A motor controller, delivering precise handling and efficient power allocation.

Boasting an exceptional maximum thrust of 98kg, it has earned its place as a top-selling motor for large drones, making it the preferred choice for heavy-duty aerial operations requiring robust power and reliability.

Tech Specs

Model	23850
Type	Brushless DC motor
KV	35
Suggested ESC	24 S 300 A
Suggested Propeller	55 inch 3-blade
Max. Thrust	98 kg
Max. Torque	80 N·m
Max. RPM	2420
Li-Po	14 S ~ 24 S
Max. Voltage	90 V
Max. Current	280 A
Max. Power	20 kW
Motor Dimension	238 mm * 50mm
Weight	4.5 kg
Application	Multi rotor drone, heavy lift drone, paramotor

Details

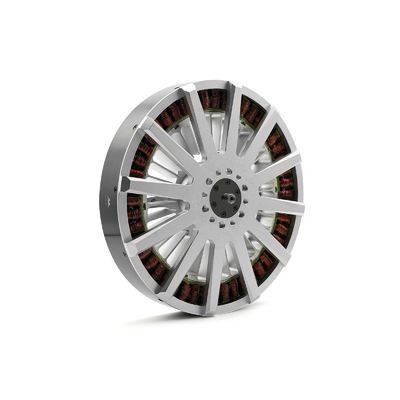

Heavy Payload 23850 DC Brushless Motor 98kg Thrust For Drone 90V 35KV For Industrial Lifting Tasks 0

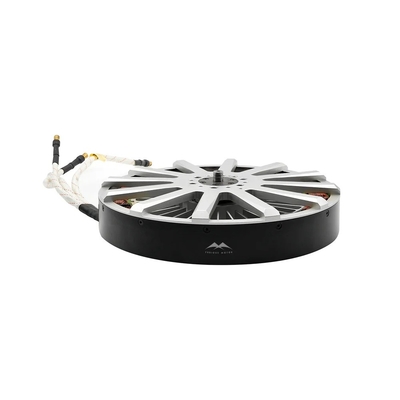

Heavy Payload 23850 DC Brushless Motor 98kg Thrust For Drone 90V 35KV For Industrial Lifting Tasks 1

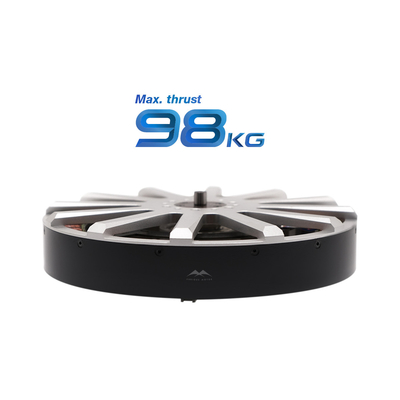

Heavy Payload 23850 DC Brushless Motor 98kg Thrust For Drone 90V 35KV For Industrial Lifting Tasks 2

Heavy Payload 23850 DC Brushless Motor 98kg Thrust For Drone 90V 35KV For Industrial Lifting Tasks 3

Heavy Payload 23850 DC Brushless Motor 98kg Thrust For Drone 90V 35KV For Industrial Lifting Tasks 4

Heavy Payload 23850 DC Brushless Motor 98kg Thrust For Drone 90V 35KV For Industrial Lifting Tasks 5

Heavy Payload 23850 Brushless DC Motor 98kg Thrust For Drone 90V 35KV Durable Design For Industrial Lifting Tasks
