202150 155KG Thrust Heavy Lift Drone Motor For Heavy Duty Aerial Operations

Brand Name:	Furious Motor
Model Number:	202150
MOQ:	1
Price:	$ 2088
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

202150

Dimension:

202 Mm * 15 0mm

Max. Thrust:

155 KG

Max. Torque:

120 N.m

Max. RPM:

Suggested ESC:

400 V 160 A

Suggested Prop:

63 Inch Propeller

Max. Current:

110 A

Max. Voltage:

400 V

Max. Power:

40 KW

Li - Po:

48 S - 96 S

Hall Sensor:

Optional

Weight:

11.8 KG

Application:

Heavy Lift Drone

Supply Ability:

3000 pcs per month

Highlight:

202150 heavy lift drone motor

155KG heavy lift drone motor

10KV drone motors heavy lift

Product Description

Intoroduction

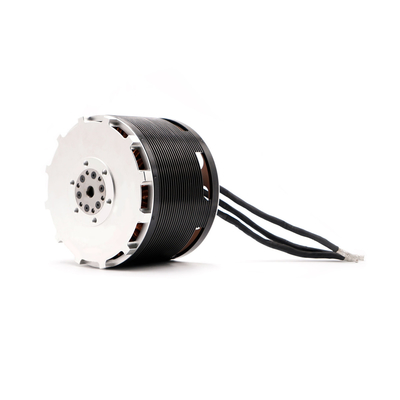

The Furious Motor 202150 brushless motor is a top-tier brushless DC motor engineered for exceptional performance across a broad spectrum of aerial applications. Designed to work seamlessly with a 63-inch propeller and a 400V 160A ESC, this motor provides robust and dependable power delivery.

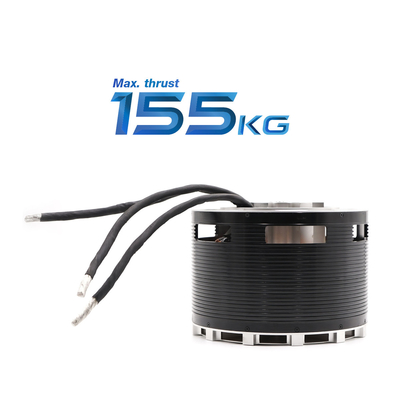

Boasting an impressive maximum thrust of 155kg, it’s perfectly suited for demanding uses such as manned aircraft, heavy lift drones, mega drones, and custom DIY drone projects, ensuring efficient and reliable propulsion for even the most challenging missions.

Tech Specs

Model	202150
Type	Brushless DC motor
KV	10
Suggested ESC	400 V 160 A
Suggested Propeller	63 inch propeller
Max. Thrust	155 kg
Max. Torque	120 N·m
Max. RPM	3500
Li-Po	48 S ~ 96 S
Max. Voltage	400 V
Max. Current	110 A
Max. Power	40 kW
Motor Dimension	202 mm * 150mm
Weight	11.8 kg
Application	Multi rotor drone, heavy lift drone
