Multi Rotor Drone Motor

240150 220KG Thrust BLDC Motor Robust Heavy Payload Drone Motor For Industrial Lifting

All Category

Brushless DC Motor

Mr. Han

han@furiousmotor.com

+86 139 2465 2635

Contact Now

240150 220KG Thrust BLDC Motor Robust Heavy Payload Drone Motor For Industrial Lifting

Brand Name:	Furious Motor
Model Number:	240150
MOQ:	1
Price:	$ 3599
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

240150

Dimension:

240 Mm * 150 Mm

Max. Thrust:

220 KG

Max. Torque:

234 N.m

Max. RPM:

Suggested ESC:

400 V 160 A

Suggested Prop:

78 Inch Propeller

Max. Current:

153 A

Max. Voltage:

400 V

Max. Power:

59 KW

Li - Po:

48 S - 96 S

Hall Sensor:

Optional

Weight:

16 KG

Application:

Heavy Lift Drone

Supply Ability:

3000 pcs per month

Highlight:

220KG bldc motor

240150 bldc motor

10kv brushless motor dc

Product Description

Intoroduction

The Furious Motor 240150 brushless motor represents a pinnacle of high-performance brushless DC motor technology, meticulously crafted to excel in propulsion applications. Perfectly optimized for integration with a 78-inch propeller and a 400V 160A ESC, this motor combines remarkable power with outstanding efficiency.

Boasting an impressive maximum thrust of up to 220kg, it stands as a robust solution for the most demanding aerial propulsion needs.

Tech Specs

Model	240150
Type	Brushless DC motor
KV	10
Suggested ESC	400 V 160 A
Suggested Propeller	78 inch propeller
Max. Thrust	220 kg
Max. Torque	234 N·m
Max. RPM	2335
Li-Po	48 S ~ 96 S
Max. Voltage	400 V
Max. Current	153 A
Max. Power	59 kW
Motor Dimension	240 mm * 150mm
Weight	16 kg
Application	Multi rotor drone, heavy lift drone

Details

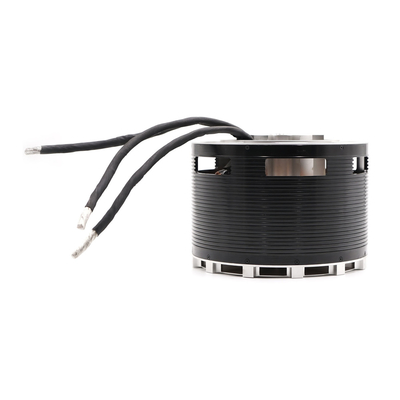

240150 220KG Thrust BLDC Motor Robust Heavy Payload Drone Motor For Industrial Lifting 0

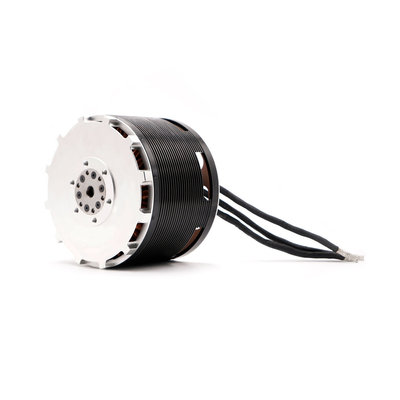

240150 220KG Thrust BLDC Motor Robust Heavy Payload Drone Motor For Industrial Lifting 1

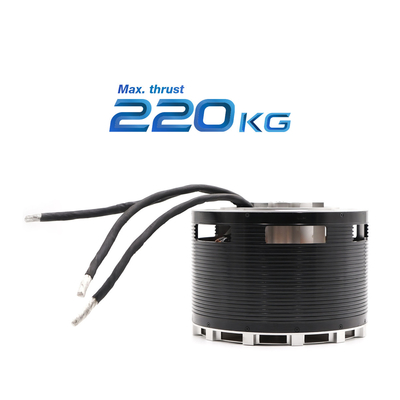

240150 220KG Thrust BLDC Motor Robust Heavy Payload Drone Motor For Industrial Lifting 2

240150 220KG Thrust BLDC Motor Robust Heavy Payload Drone Motor For Industrial Lifting 3

240150 220KG Thrust BLDC Motor Robust Heavy Payload Drone Motor For Industrial Lifting 4

240150 220KG Thrust BLDC Motor Robust Heavy Payload Drone Motor For Industrial Lifting 5

240150 220KG Thrust BLDC Motor Robust Heavy Payload Drone Motor For Industrial Lifting With Reliable Stability
