8318 13.5kg Thrust Lightweight BLDC Motor For Multi Rotor Drone With Smooth Stable Operation

Brand Name:	Furious Motor
Model Number:	8318
MOQ:	4
Price:	$79
Packaging Details:	Carton with protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

Dimension:

83mm * 18mm

Max. Thrust:

Max. Torque:

Max. RPM:

Suggested ESC:

12S 80A

Suggested Prop:

31 Inch

Max. Current:

Max. Voltage:

Max. Power:

2.7KW

Li-Po:

3S - 12S

Hall Sensor:

Optional

Weight:

0.62KG

Supply Ability:

3000 pcs / month

Highlight:

8318 BLDC Motor

13.5kg BLDC Motor

Lightweight brushless motor

Product Description

Introduction

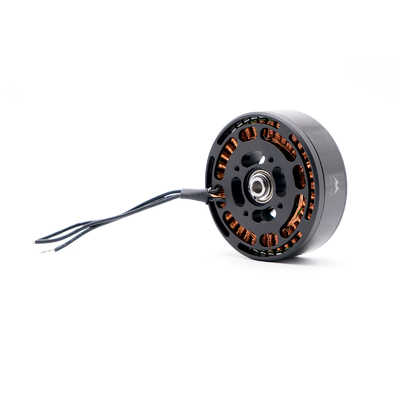

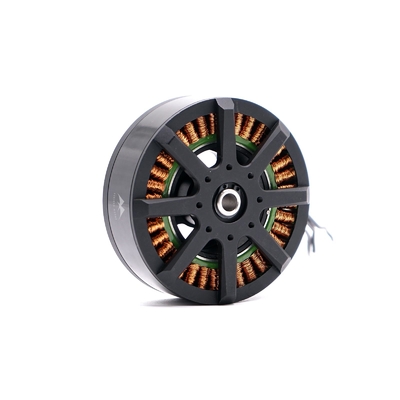

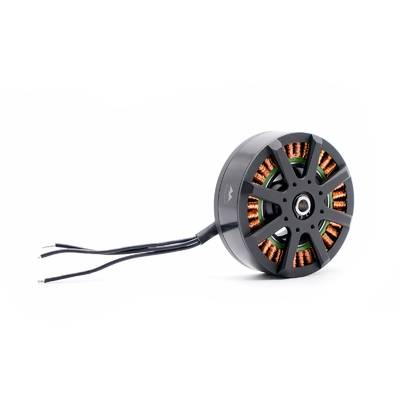

Unveiling the Furious Motor 8318 brushless motor, a standout performer blending exceptional efficiency with pinpoint accuracy. Featuring an impressive thrust capacity of up to 13kg, its sleek yet sturdy construction is perfectly suited for agricultural drones, UAVs, and multi rotor drone. This motor shines with its extraordinary customizability, enabling effortless adaptation across diverse applications. Maximize its potential by pairing it with our AH-31 foldable propeller and a 12S 80A motor controller for unmatched performance.

Tech Specs

Model	8318
Type	Brushless DC motor
KV	100
Suggested ESC	12 S 80 A
Suggested Propeller	31 inch foldable 2-blade
Max. Thrust	13.5 kg
Max. Torque	5 N·m
Max. RPM	4900
Li-Po	3 S ~ 12 S
Max. Voltage	48 V
Max. Current	65 A
Max. Power	2.7 kW
Motor Dimension	83 mm * 18mm
Weight	610 g
Application	Multi rotor drone, agricultural drone

Details

8318 13.5kg Thrust Lightweight BLDC Motor For Multi Rotor Drone With Smooth Stable Operation 0

8318 13.5kg Thrust Lightweight BLDC Motor For Multi Rotor Drone With Smooth Stable Operation 1

8318 13.5kg Thrust Lightweight BLDC Motor For Multi Rotor Drone With Smooth Stable Operation 2

8318 13.5kg Thrust Lightweight BLDC Motor For Multi Rotor Drone With Smooth Stable Operation 3

8318 13.5kg Thrust Lightweight BLDC Motor For Multi Rotor Drone With Smooth Stable Operation 4

8318 13.5kg Thrust Lightweight BLDC Motor For Multi Rotor Drone With Smooth Stable Operation 5

8318 13.5kg Thrust Lightweight BLDC Motor For Multi Rotor Drone With Smooth Stable Operation 6

8318 13.5kg Thrust Lightweight BLDC Motor For Multi Rotor Drone With Smooth And Stable Operation
