Robust Multirotor Drone 12090 Propulsion System 100V With 36 Inch Propeller And 150A ESC

Brand Name:	Furious Motor
Model Number:	12090
MOQ:	1
Price:	$929
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

12090

Dimension:

120mm * 90mm

Max. Thrust:

Max. Torque:

18N.m

Max. RPM:

Suggested ESC:

24S 150A

Suggested Prop:

36 Inch Propeller

Max. Current:

Max. Voltage:

Max. Power:

Li - Po:

14S - 24S

Hall Sensor:

Optional

Weight:

3.43KG

Application:

Drone, Paramotor

Supply Ability:

3000 pcs per month

Highlight:

12090 propulsion system

90V propulsion system

42KG dc brushless motor

Product Description

Intoroduction

For applications where sheer lifting force is paramount, the 12090 brushless motor stands as a pinnacle of aerial propulsion. Engineered to drive substantial payloads, this motor empowers a diverse range of platforms, from expansive cargo drones and robust multirotor systems to adventurous paramotors and paragliders.

Leveraging a 24S 150A controller and a 36-inch propeller, it achieves a staggering 42kg of thrust, providing the reliable muscle needed for the most demanding aerial operations.

Tech Specs

Model	12090
Type	Brushless DC motor
KV	80
Suggested ESC	24 S 150 A
Suggested Propeller	36 inch
Max. Thrust	42 kg
Max. Torque	18 N·m
Max. RPM	4770
Li-Po	14 S ~ 24 S
Max. Voltage	79 V
Max. Current	136 A
Max. Power	9 kW
Motor Dimension	120 mm * 90 mm
Weight	2.78 kg
Application	Multi rotor drone, heavy lift drone, paramotor

Details

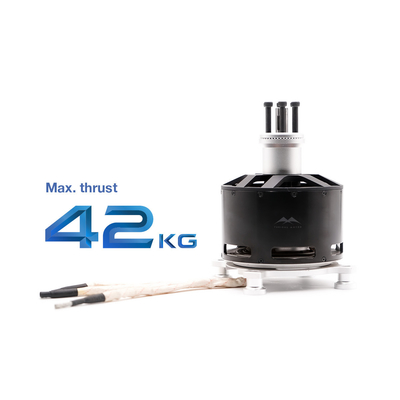

Robust Multirotor Drone 12090 Propulsion System 100V With 36 Inch Propeller And 150A ESC 0

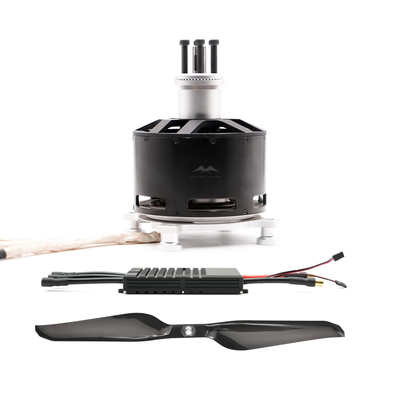

Robust Multirotor Drone 12090 Propulsion System 100V With 36 Inch Propeller And 150A ESC 1

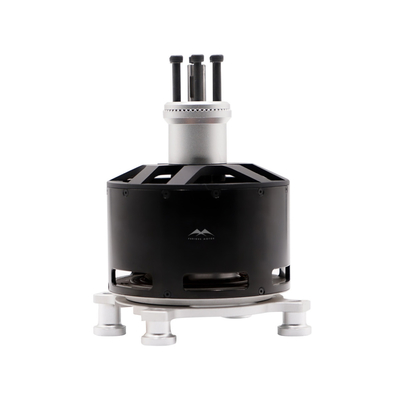

Robust Multirotor Drone 12090 Propulsion System 100V With 36-Inch Propeller And 150A ESC
