12070 Electric Motor DC Brushless For Multirotor Drone With 36 Inch Propeller And 150A ESC

Brand Name:	Furious Motor
Model Number:	12070
MOQ:	1
Price:	$300
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

12070

Dimension:

120mm * 70mm

Max. Thrust:

Max. Torque:

18N.m

Max. RPM:

Suggested ESC:

24S 150A

Suggested Prop:

36 Inch Propeller

Max. Current:

Max. Voltage:

Max. Power:

Li - Po:

14S - 24S

Hall Sensor:

Optional

Weight:

2.4KG

Application:

Drone

Supply Ability:

3000 pcs per month

Highlight:

12070 electric motor dc brushless

150A electric motor dc brushless

24S brushless dc electric motor

Product Description

Introduction

The Furious Motor 12070 BLDC motor marks a notable breakthrough in propulsion innovation, carefully engineered to serve a broad spectrum of uses, from large drones and UAVs to multirotor systems, robotic applications, and electric tools.

This enhanced motor is precisely calibrated for peak performance, pairing effortlessly with a 36-inch propeller and a 24S 150A motor controller to ensure accurate handling and effective energy flow. With a substantial maximum thrust of 40kg, it provides powerful support for a range of heavy lift drone operations.

Tech Specs

Model	12070
Type	Brushless DC motor
KV	80
Suggested ESC	24 S 150 A
Suggested Propeller	36 inch
Max. Thrust	41 kg
Max. Torque	16 N·m
Max. RPM	5400
Li-Po	14 S ~ 24 S
Max. Voltage	79 V
Max. Current	112 A
Max. Power	8.5 kW
Motor Dimension	120 mm * 70mm
Weight	2.4 kg
Application	Multi rotor drone, heavy lift drone, paramotor

Details

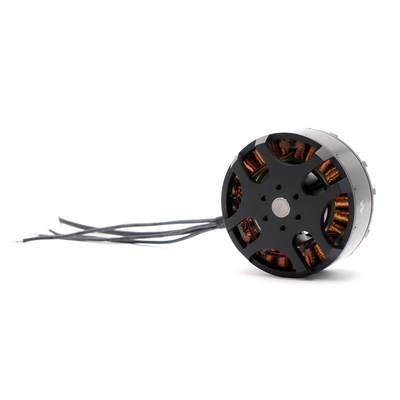

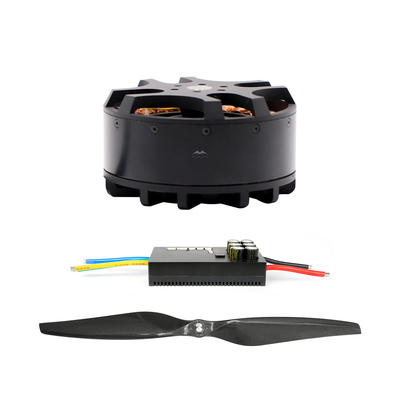

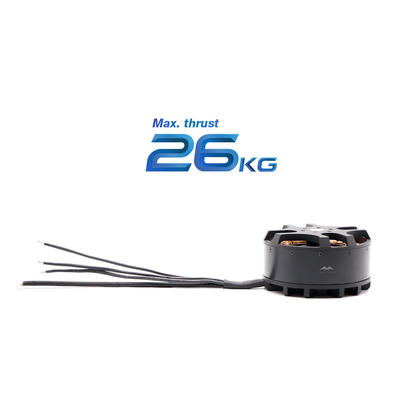

12070 Electric Motor DC Brushless For Multirotor Drone With 36 Inch Propeller And 150A ESC 0

12070 Electric Motor DC Brushless For Multirotor Drone With 36 Inch Propeller And 150A ESC 2

12070 Electric Motor DC Brushless For Multirotor Drone With 36 Inch Propeller And 150A ESC 7

Efficient Brushless DC Motor 12070 For Multirotor Drone With 36-Inch Propeller And 150A ESC
