400V PWM Motor Speed Controller High Voltage With CAN Bus For Heavy Duty Drone Multi Rotor Drone

Brand Name:	Furious Motor
Model Number:	400 V 160 A
MOQ:	1
Price:	$2898
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

96 S 160 A

Effective Throttle Range:

1050 Us ~ 1940 Us

5 V 200 MA

Input Voltage:

DC 200 V ~ 400 V

Continuous Current:

160 A

Ingress Protecton:

IP X4

Suggested Li-po:

48 S ~ 96 S Lipo

Dimension:

232 Mm * 121 Mm * 68.8 Mm

Weight:

1480 G

Frequency:

50 Hz ~ 500 Hz

Supply Ability:

3000 pcs per month

Highlight:

400V fpv esc

160A fpv esc

96S esc fpv drone

Product Description

Intoroduction

Achieve unparalleled control and dynamic performance with our 96S 160A ESC. Engineered for rapid acceleration, this unit transitions from idle to full speed in a mere 0.60 seconds. Featuring dual throttle inputs (CAN and PWM), with priority given to the precision of CAN digital control, it ensures seamless integration with advanced flight systems.

Synchronous regenerative braking enhances throttle response and efficiency. Comprehensive RPM and error signal outputs, coupled with CAN communication, provide real-time data for critical flight parameters.

Safety is paramount, with signal and power isolation integrated into the design, and flexible installation options allow for diverse mounting configurations. Optimized for seamless operation with 202150 and 240150 motors.

Tech Specs

Model	96 S 160 A
Effective Throttle Range	1050 us ~ 1940 us
BEC	5 V 200 mA
Input Voltage	DC 200 V ~ 400 V
Continuous Current	160 A
Ingress Protecton	IP X4
Suggested Li-po	48 S ~ 96 S
Dimension	179 mm * 99.6 mm * 66 mm
Weight	1480 g
Frequency	50 Hz ~ 500 Hz
Wire	8 AWG
Online Upgrade	Yes
Throttle Loss Protection	Yes
Error Signal	Yes
Temperature Protection	Yes
Voltage Protection	Yes
Lock Protection	Yes
RPM Output	Yes
CAN Communication	Yes
Working Temperature	-20 °C ~ 65 °C

Details

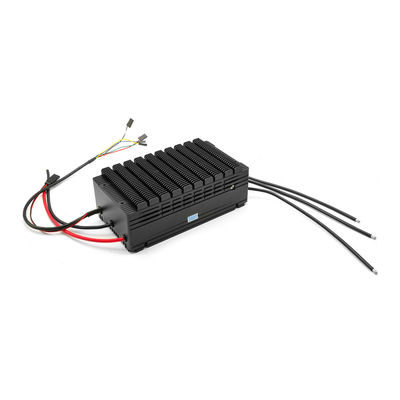

400V PWM Motor Speed Controller High Voltage With CAN Bus For Heavy Duty Drone Multi Rotor Drone 0

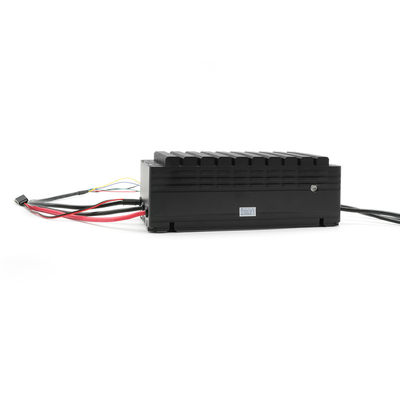

400V PWM Motor Speed Controller High Voltage With CAN Bus For Heavy Duty Drone Multi Rotor Drone 1

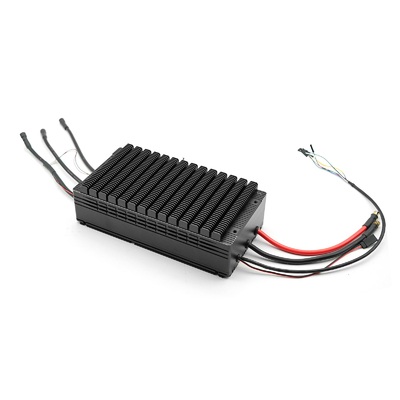

400V PWM Motor Speed Controller High Voltage With CAN Bus For Heavy Duty Drone Multi Rotor Drone 2

400V PWM Motor Speed Controller High Voltage With CAN Bus For Heavy Duty Drone Multi Rotor Drone 3

High Voltage 400V PWM Motor Speed Controller With CAN Bus For Heavy Duty Drone Multi Rotor Drone
