75V Programmable VESC Motor Controller With Regenerative Braking For Multi Rotor Drone

Brand Name:	Furious Motor
Model Number:	VESC 75 V 200 A
MOQ:	1
Price:	$160
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

75 V 200 A

Firmware:

5.2

Voltage:

12 V ~ 84 V

Continuous Current:

50 V / 200 A, 75 V / 150 A

Burst Current:

300 A

BEC:

5 V, 1 A

Mode:

DC, BLDC, FOC

ERPM:

150000

Port:

USB, PWM, CAN, UART, SPI, IIC

Sensor:

ABI, HALL, AS5047, AS5048A

Input Source:

PPM, ADC, NRF, UART

Size:

130 Mm * 67.7 Mm * 40.1 Mm

Supply Ability:

3000 pcs per month

Highlight:

75V Drone ESC

200A vesc motor controller

Product Description

Intoroduction

For demanding electric vehicle applications, our 75V 200A ESC offers unmatched versatility and advanced tuning capabilities. Supporting a wide voltage range of 14-84V (4-20S) and delivering a continuous current of 200A, this controller adapts to diverse setups with BLDC, FOC, and DC modes.

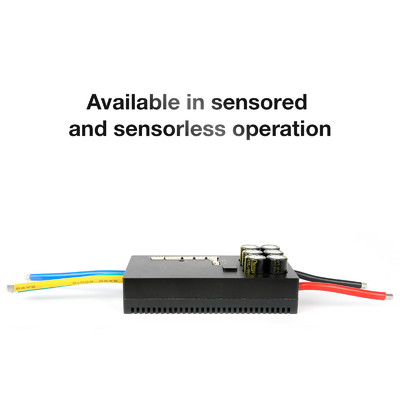

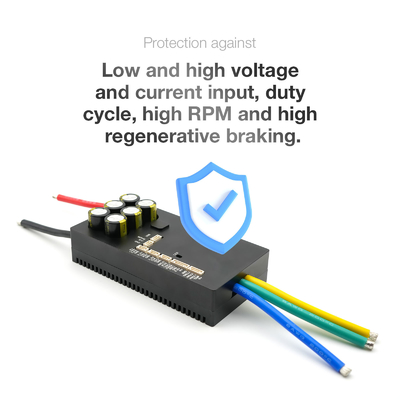

With a high ERPM rating of 150,000, sensor and sensorless operation, and full compatibility with VESC_TOOL, it enables precise customization. Comprehensive communication interfaces (USB, CAN, UART, SPI, IIC), adjustable protection features, and an aluminum PCB for enhanced thermal management make it ideal for high-power applications, including drone, e-bikes and skateboards.

Tech Specs

Model	75 V 200 A
Firmware	5.2
Voltage	12 V ~ 84 V
Continuous Current	50 V / 200 A, 75 V / 150 A
Burst Current	300 A
BEC	5 V, 1 A
Mode	DC, BLDC, FOC
ERPM	150000
Port	USB, PWM, CAN, UART, SPI, IIC
Sensor	ABI, HALL, AS5047, AS5048A
Input Source	PPM, ADC, NRF, UART
Size	130 mm * 67.7 mm * 40.1 mm
Wire	8 AWG
