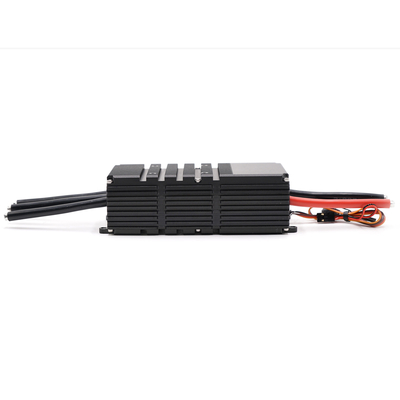

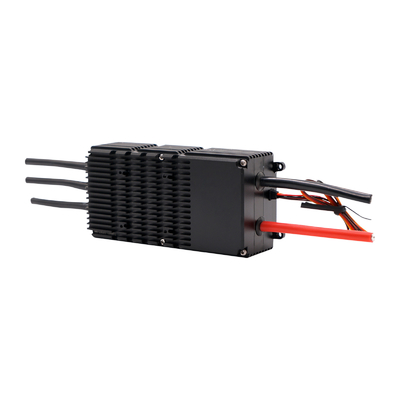

High Performance Stable 100V PWM ESC With RPM Signal For Brushless Drone Motor
  • name
  • name
  • name
  • name
  • name

High Performance Stable 100V PWM ESC With RPM Signal For Brushless Drone Motor

Brand Name: Furious Motor
Model Number: 24S 300A
MOQ: 1
Price: $929
Packaging Details: Carton witn protection (EPE)
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Model:
24S 300A
Dimension:
148mm * 66.6mm * 47mm
Li - Po:
12S - 24S
Max. Current:
300A
Frequency:
50Hz - 400Hz
Effective Throttle:
900us - 2000us
Ingress Protection:
Optional
Type:
PWM
Electric Advance:
15°
Weight:
810g
Working Temperature:
-20°C ~ 65°C
Supply Ability:
3000 pcs per month
Highlight:

300A pwm esc

,

100V pwm esc

,

24S pwm esc brushless motor

Product Description

Intoroduction



Engineered for the rigors of heavy-lift drone operations, our 24S 300A ESC provides dependable high-voltage brushless motor control. Built with advanced algorithms and professional-grade drive chips, it ensures precise commutation and reliable performance.



This ESC offers user-friendly throttle calibration and incorporates essential protection features, including over-temperature, motor lock, and signal loss protection. Its wide compatibility with BLDC motors guarantees optimal control and safety for your critical aerial endeavors.





Tech Specs



Model 24 S 300 A
Effective Throttle Range 900 us ~ 2000 us
Advanced Angle 15°
Input Voltage DC 50 V ~ 100 V
Peak Current 300 A
Ingress Protecton Rainproof
Suggested Li-po 12 S ~ 24 S
Dimension 140.5 mm * 66.6 mm * 47.1 mm

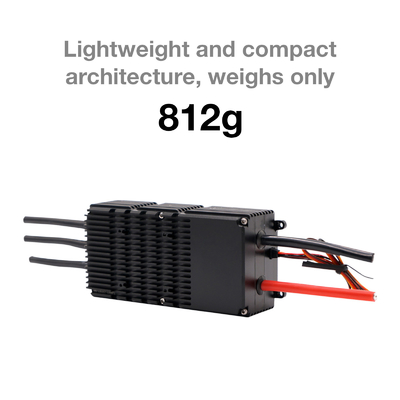

Weight 812 g
Motor 154120, 23850, 20280, 23850, 238100





Details

High Performance Stable 100V PWM ESC With RPM Signal For Brushless Drone Motor 0High Performance Stable 100V PWM ESC With RPM Signal For Brushless Drone Motor 1High Performance Stable 100V PWM ESC With RPM Signal For Brushless Drone Motor 2High Performance Stable 100V PWM ESC With RPM Signal For Brushless Drone Motor 3High Performance Stable 100V PWM ESC With RPM Signal For Brushless Drone Motor 4

100V High-Performance Stable PWM ESC With RPM Signal For Brushless Drone Motor
