Heavy Duty 100V 150A ESC With RPM Signal For Industrial Drone Motor Heavy Lift Drone Motor
  • name
  • name
  • name
  • name

Heavy Duty 100V 150A ESC With RPM Signal For Industrial Drone Motor Heavy Lift Drone Motor

Brand Name: Furious Motor
Model Number: 24S 150A
MOQ: 1
Price: $450
Packaging Details: Carton witn protection (EPE)
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Model:
24S 150A
Dimension:
140.5mm * 66.6mm * 18mm
Li - Po:
12S - 24S
Max. Current:
150A
Frequency:
50Hz - 400Hz
Effective Throttle:
900us - 2000us
Ingress Protection:
Optional
Type:
PWM
Electric Advance:
15°
Weight:
450g
Working Temperature:
-20°C ~ 65°C
Supply Ability:
3000 pcs per month
Highlight:

100V drone esc

,

150A drone esc

,

Heavy Duty drone motor esc

Product Description

Intoroduction



Designed for the demanding environment of heavy-lift drones, our 24S 150A ESC delivers optimized brushless motor control. Employing advanced algorithms and professional-grade drive chips, it ensures precise commutation and reliable high-voltage operation.



This ESC features user-friendly throttle calibration and comprehensive protection against over-temperature, motor lock, and signal loss. Specifically engineered for seamless integration with our 12070 and 12090 motors, as well as a range of other BLDC motors, it provides exceptional control and efficiency for your aerial applications.





Tech Specs

Model 24 S 150 A
Effective Throttle Range 900 us ~ 2000 us
Advanced Angle 15°
Input Voltage DC 50 V ~ 100 V
Peak Current 150 A
Ingress Protecton Rainproof
Suggested Li-po 12 S ~ 24 S

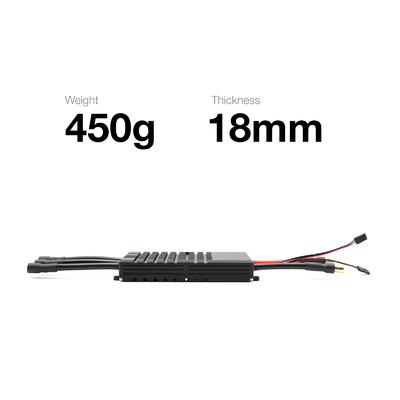

Dimension 140.5 mm * 66.6 mm * 18 mm
Weight 450 g
Motor 12070, 12090, 120100





Details

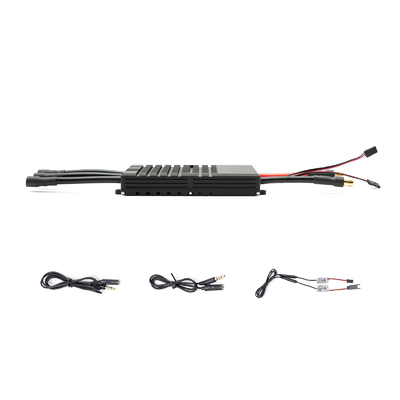

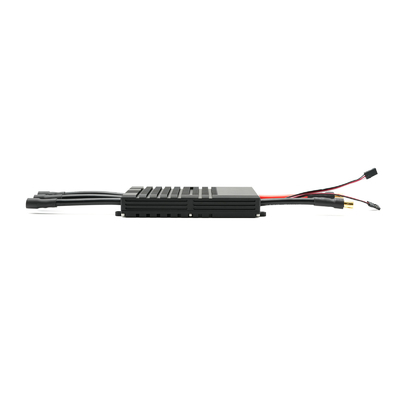

Heavy Duty 100V 150A ESC With RPM Signal For Industrial Drone Motor Heavy Lift Drone Motor 0

Heavy Duty 100V 150A ESC With RPM Signal For Industrial Drone Motor Heavy Lift Drone Motor 1Heavy Duty 100V 150A ESC With RPM Signal For Industrial Drone Motor Heavy Lift Drone Motor 2

Heavy Duty 100V 150A ESC With RPM Signal For Industrial Drone Motor Heavy Lift Drone Motor 3



Heavy Duty 100V 150A ESC With RPM Signal For Industrial Drone Motor Heavy Lift Drone Motor 4

Heavy Duty 100V 150A ESC With RPM Signal For Industrial Drone Motor Heavy Lift Drone Motor 5

Heavy Duty 100V 150A ESC With RPM Signal For Industrial Drone Motor Heavy Lift Drone Motor 6

Heavy-Duty 100V 150A ESC With RPM Signal For Industrial Drone Motor Heavy Lift Drone Motor
