100V 200A Precision PWM ESC Motor Controller For Brushless DC Motor And Paramotor
  • name
  • name
  • name

100V 200A Precision PWM ESC Motor Controller For Brushless DC Motor And Paramotor

Brand Name: Furious Motor
Model Number: 24S 200A
MOQ: 1
Price: $790
Packaging Details: Carton witn protection (EPE)
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Model:
24S 300A
Dimension:
140.5mm * 66.6mm * 34.4mm
Li - Po:
12S - 24S
Max. Current:
200A
Frequency:
50Hz - 400Hz
Effective Throttle:
900us - 2000us
Ingress Protection:
Optional
Type:
PWM
Electric Advance:
15°
Weight:
595g
Working Temperature:
-20°C ~ 65°C
Supply Ability:
3000 pcs per month
Highlight:

200A esc motor controller

,

100V esc motor controller

,

PWM esc drone fpv

Product Description

Intoroduction

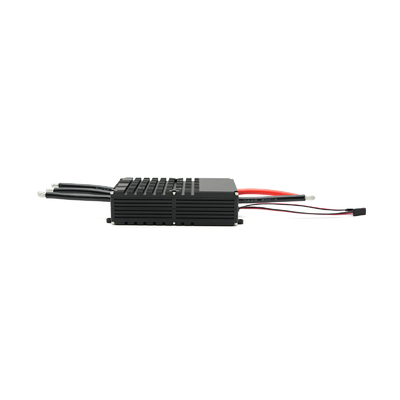

Achieve reliable and safe high-voltage brushless motor control with our 24S 200A ESC, engineered for demanding heavy-lift drone applications. Built with advanced algorithms and professional-grade drive chips, it ensures precise commutation and robust performance.



This ESC features convenient throttle calibration and comprehensive protection against over-temperature, motor lock, and signal loss. Optimized for seamless integration with BLDC motors, particularly our 12090, 120100, 15060, and 15470 models, it delivers optimal control and efficiency.



Tech Specs



Model 24 S 200 A
Effective Throttle Range 900 us ~ 2000 us
Advanced Angle 15°
Input Voltage DC 50 V ~ 100 V
Peak Current 240 A
Ingress Protecton Rainproof
Suggested Li-po 12 S ~ 24 S
Dimension 140.5 mm * 66.6 mm * 34.4 mm
Weight 595 g
Motor 12090, 15060, 120100, 15470





Details

100V 200A Precision PWM ESC Motor Controller For Brushless DC Motor And Paramotor 0



100V 200A Precision PWM ESC Motor Controller For Brushless DC Motor And Paramotor 1100V 200A Precision PWM ESC Motor Controller For Brushless DC Motor And Paramotor 2

100V 200A Precision PWM ESC Motor Controller For Brushless DC Motor And Paramotor 3

100V 200A Precision PWM ESC Motor Controller For Brushless DC Motor And Paramotor 4

100V 200A Precision PWM ESC Motor Controller For Brushless DC Motor And Paramotor 5

100V 200A Precision PWM ESC Motor Controller For Brushless DC Motor And Paramotor
