High Voltage 400V Precision PWM ESC With CAN Bus For Brushless DC Motor Heavy Lift Drone

Brand Name:	Furious Motor
Model Number:	400 V 100 A
MOQ:	1
Price:	$1750
Packaging Details:	Carton witn protection (EPE)
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Model:

96 S 100 A

Effective Throttle Range:

1050 Us ~ 1940 Us

BEC:

5 V 200 MA

Input Voltage:

DC 200 V ~ 400 V

Peak Current:

100 A

Ingress Protecton:

IP X4

Suggested Li-po:

48 S ~ 96 S Lipo

Dimension:

179 Mm * 99.6 Mm * 66 Mm

Weight:

986 G

Frequency:

50 Hz ~ 500 Hz

Supply Ability:

3000 pcs per month

Highlight:

400V Drone ESC

High Voltage Drone ESC

Heavy Lift Drone esc fpv

Product Description

Intoroduction

Designed for the demanding requirements of heavy-lift drone applications, our 96S 100A ESC delivers unparalleled responsiveness. Experience near-instantaneous power delivery, achieving full speed from idle in a mere 0.6 seconds. This ESC utilizes a dual-channel control system, with CAN bus prioritized for exceptional command accuracy.

Synchronous regeneration ensures optimal efficiency, precise RPM control, and real-time data transmission via CAN bus, providing the critical information needed for complex operations.

Tech Specs

Model	96 S 100 A
Effective Throttle Range	1050 us ~ 1940 us
BEC	5 V 200 mA
Input Voltage	DC 200 V ~ 400 V
Peak Current	100 A
Ingress Protecton	IP X4
Suggested Li-po	48 S ~ 96 S
Dimension	179 mm * 99.6 mm * 66 mm
Weight	986 g
Frequency	50 Hz ~ 500 Hz
Wire	8 AWG
Online Upgrade	Yes

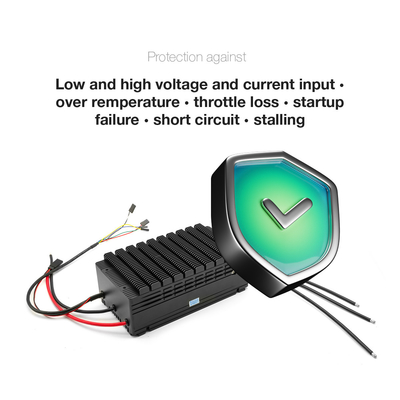

Throttle Loss Protection	Yes
Error Signal	Yes
Temperature Protection	Yes
Voltage Protection	Yes
Lock Protection	Yes
RPM Output	Yes
CAN Communication	Yes
Working Temperature	-20 °C ~ 65 °C
